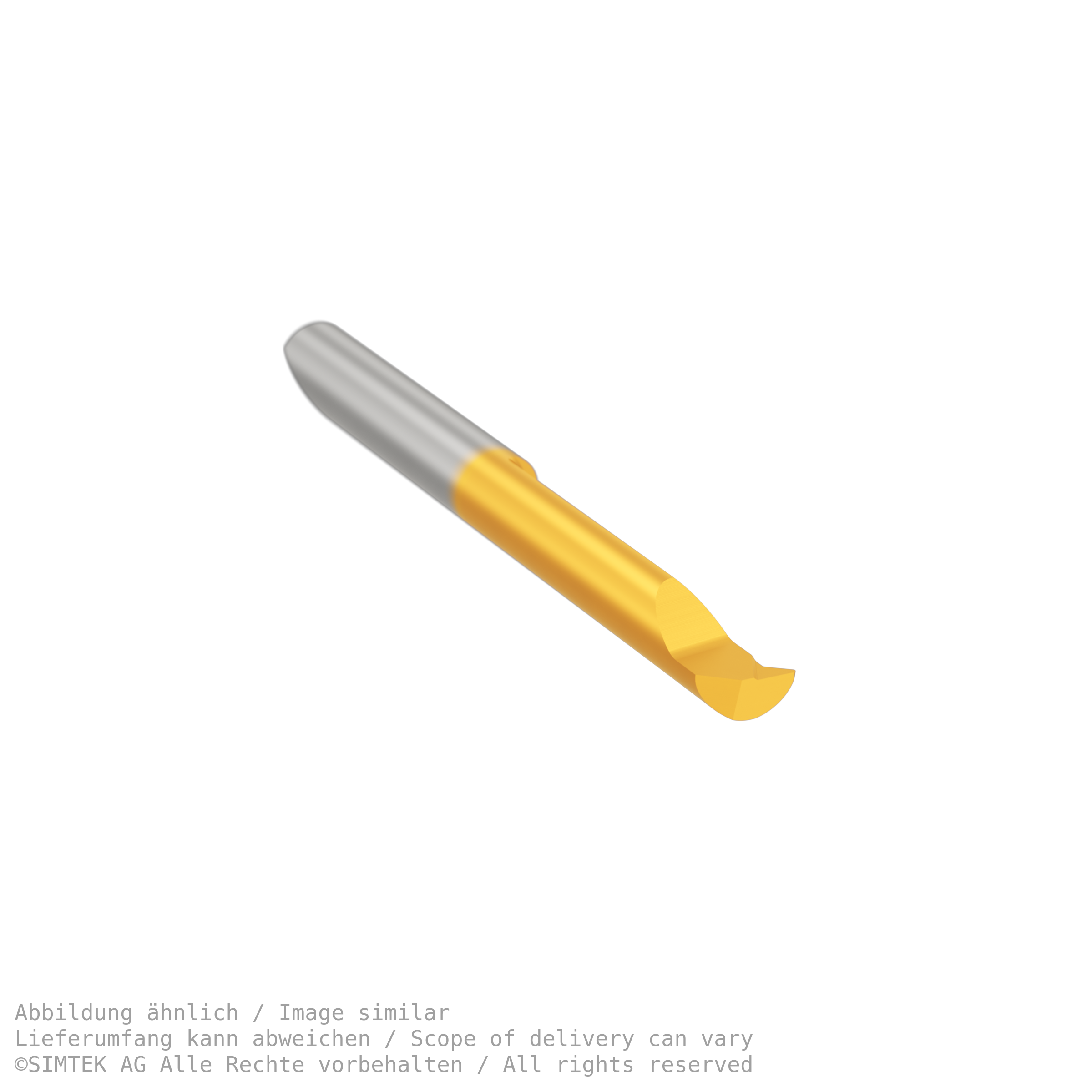

A04.4710.10.22.10 YL X800

Copying and profiling
Dmin=2,2 ,R=0,1 , L2=10,2
Webcode: ACYG
Connectcodes: A04.L , A04C.L

Copying / Profiling with 47°

group logo simturn AX

Cutting grade

X800
23,65 €

23,65 €

Available immediately ex stock. Subject to prior sale. Indicated price is list price per piece.

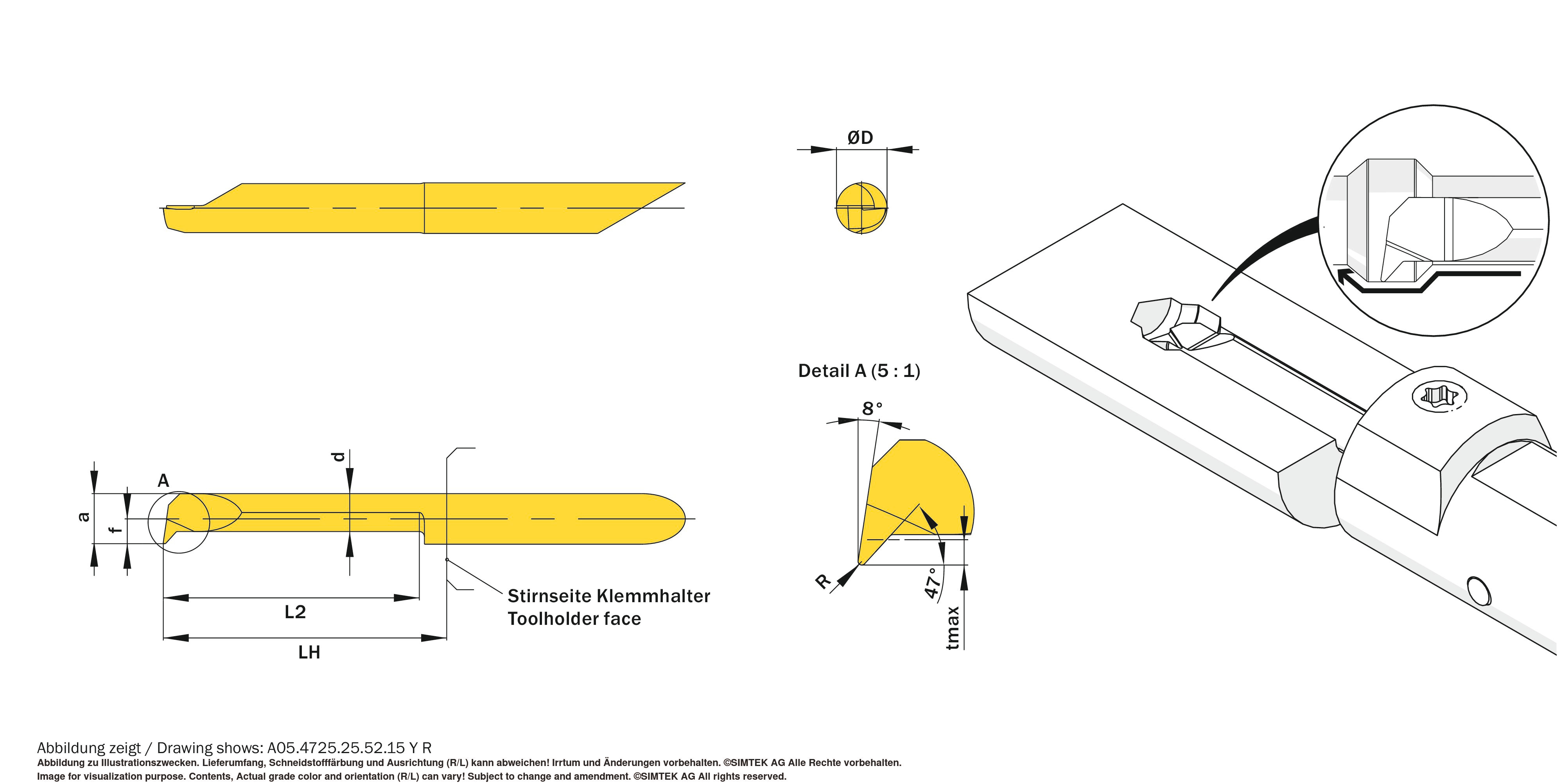

Product information

ØD 4 mm
f 0,95 mm
L2 10,16 mm
ØDmin 2,2 mm
R 0,1 mm
Improved through coolant yes
LH 13 mm
a 1,95 mm
d 1,35 mm
tmax 0,4 mm
