A04.3220.20.42.15 YR X800

Copying and profiling
Dmin=4,2 ,R=0,15 , L2=20,3
Webcode: A50X
Connectcodes: A04C.R

Copying / Profiling with 32°

group logo simturn AX

Cutting grade

X800
32,20 €

Tool orientation

Right handed tool

32,20 €

Available immediately ex stock. Subject to prior sale. Indicated price is list price per piece.

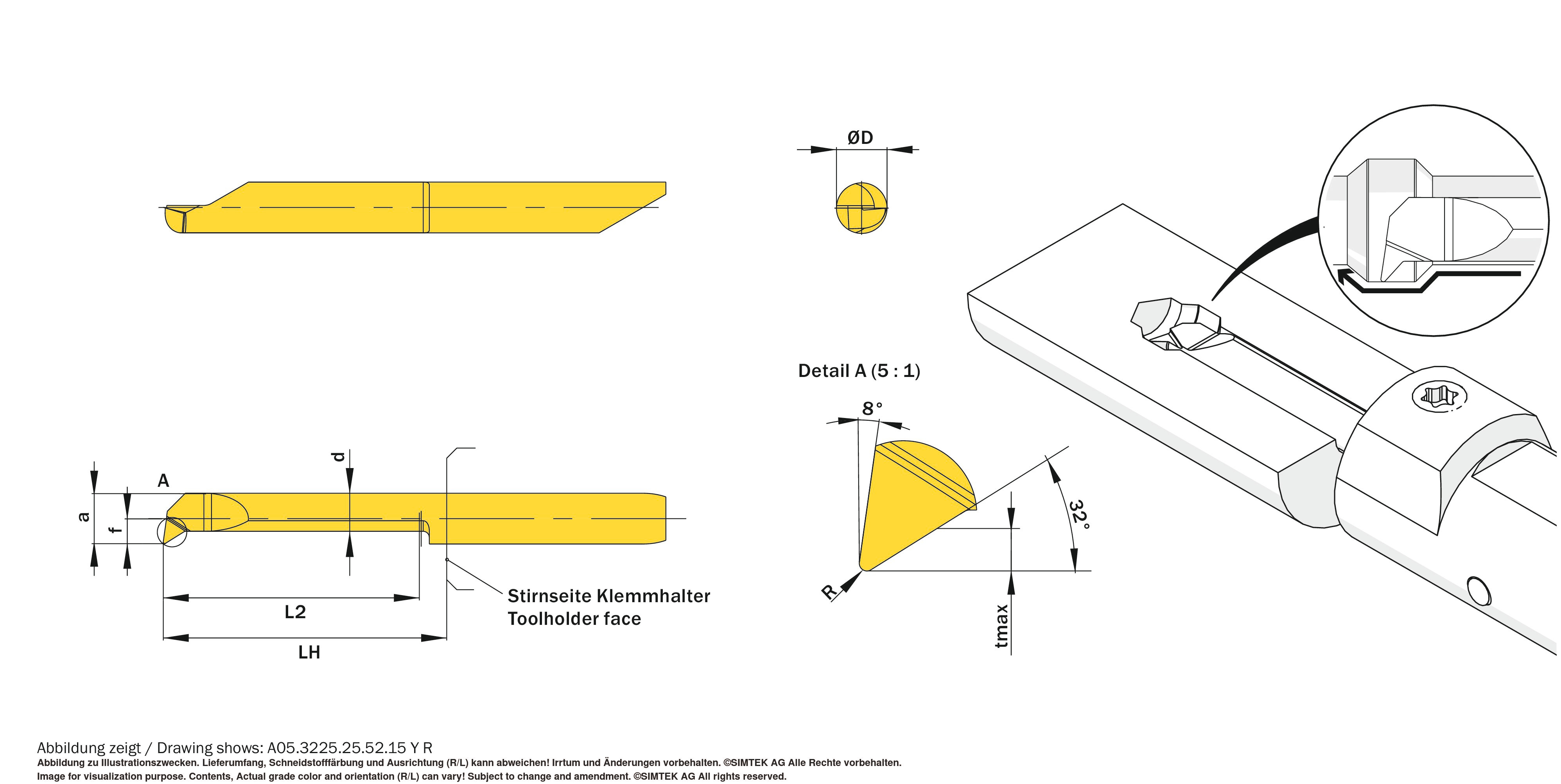

Product information

ØD 4 mm
f 1,95 mm
L2 20,3 mm
ØDmin 4,2 mm
R 0,15 mm
Improved through coolant yes
LH 23 mm
a 3,95 mm
d 2,95 mm
tmax 0,8 mm

Looking for a suitable toolholder?

Our standard range offers matching toolholders for every cutting insert.

Find your matching tool solution
